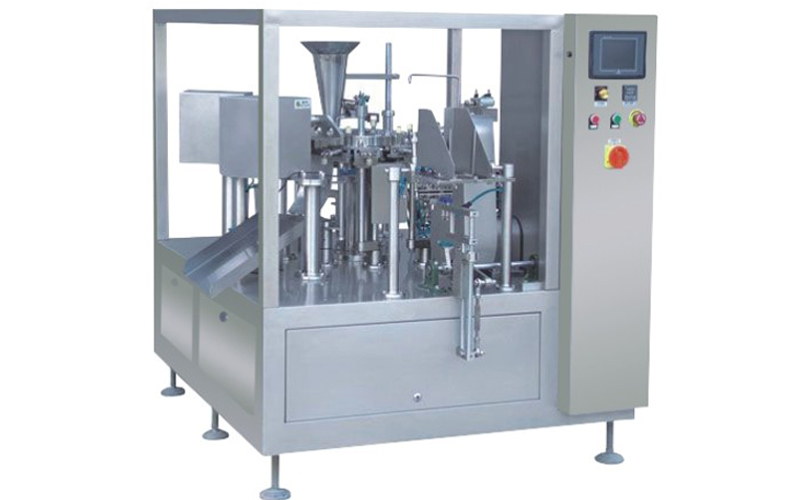

AF-FS Coffee pouch machine for coffee beans pouch filling sealing

pouch packaging machine

Coffee beans pouch machine features

Function and characteristics

1.Easy to operate,adopt advanced PLC from Germany Siemens,  match with touch screen and electric control system, the man-machine interface is friendly.

2.Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production

3.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

4.Safety device: Machine stop at abnormal air pressure, heater disconnection alarm。

5.The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.

6.It match with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.

7.the plastic bearing, don’t need put on oil, less pollution.

8,Use no oil vacuum pump, avoid polluting the environment in the production.

9.The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and  has a  high quality of the sealing part, this improved the product specification

10.Product or packing bag contact parts  adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food

11.With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.

12.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.

.

Model AF-HB210
Bag size

100-210mm/110-300mm(W*L

Speed 10-45 bags/min

bag type

Pillow bag, (Optional: punching bag, gusseted bag, vacuum bag)

Block bottom back、4 sides seal,readymade pouch and etc

filling materials weight 200G-2KG
Voltage Can be customized
Air pressure/gas consumption ≥0.6m3/min 0.65MPa
Machine weight 600Kgs


    Please prove you are human by selecting the Cup.

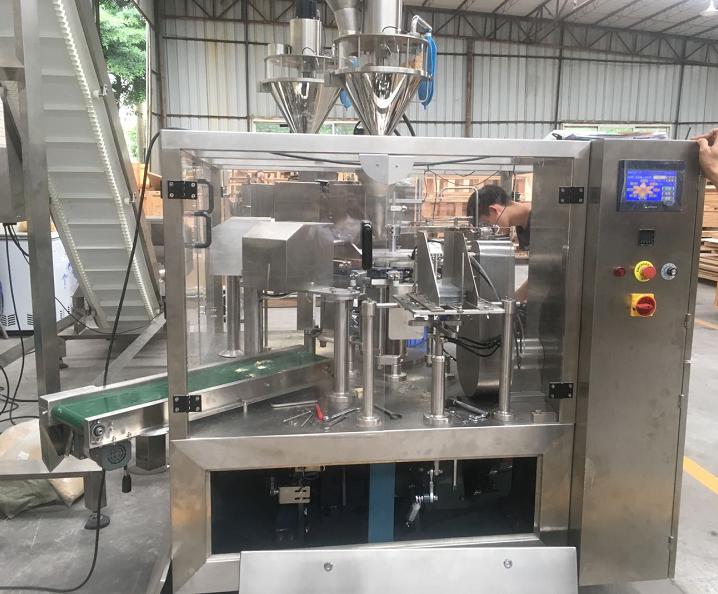

    Coffee Pouch Machine Samples

    FAQs

    How long need to build one machine like this?

    Normally we need 2-3 months to produce a machine.

    What should I prepare to build a machine?

    As to our experiences, we suggest you ship us your empty containers, sealing materials, and filling materials, This will be a great help for the machine testing.

    What do I need in my factory to work with this machine?

    You only need the big enough air compressor and Nitrogen generator. If you don’t have, we can also offer.

    What's the warranty of this machine?

    We offer 2 years warranty on all our machines, and lifelong maintain service.

    How to install this machine when we get it?

    Machines will ship in a complete package, you will no need to assemble again in your factory. We suggest you to invite our engineers to your factory to train your people.
