K Cup Coffee CAPSULE FILLING & SEALING MACHINES

K cup is the most popular single serve coffee packaging solution in the North America market. When Keurig lost its K-cup patents in the fall of 2012. Lots of companies are making their own brands now.

Because of low cost and easy to operate, AFPAK has helped over 30 different sizes companies to make the K cup filling sealing packaging line in the past 5 years, which are all well running in their factories.

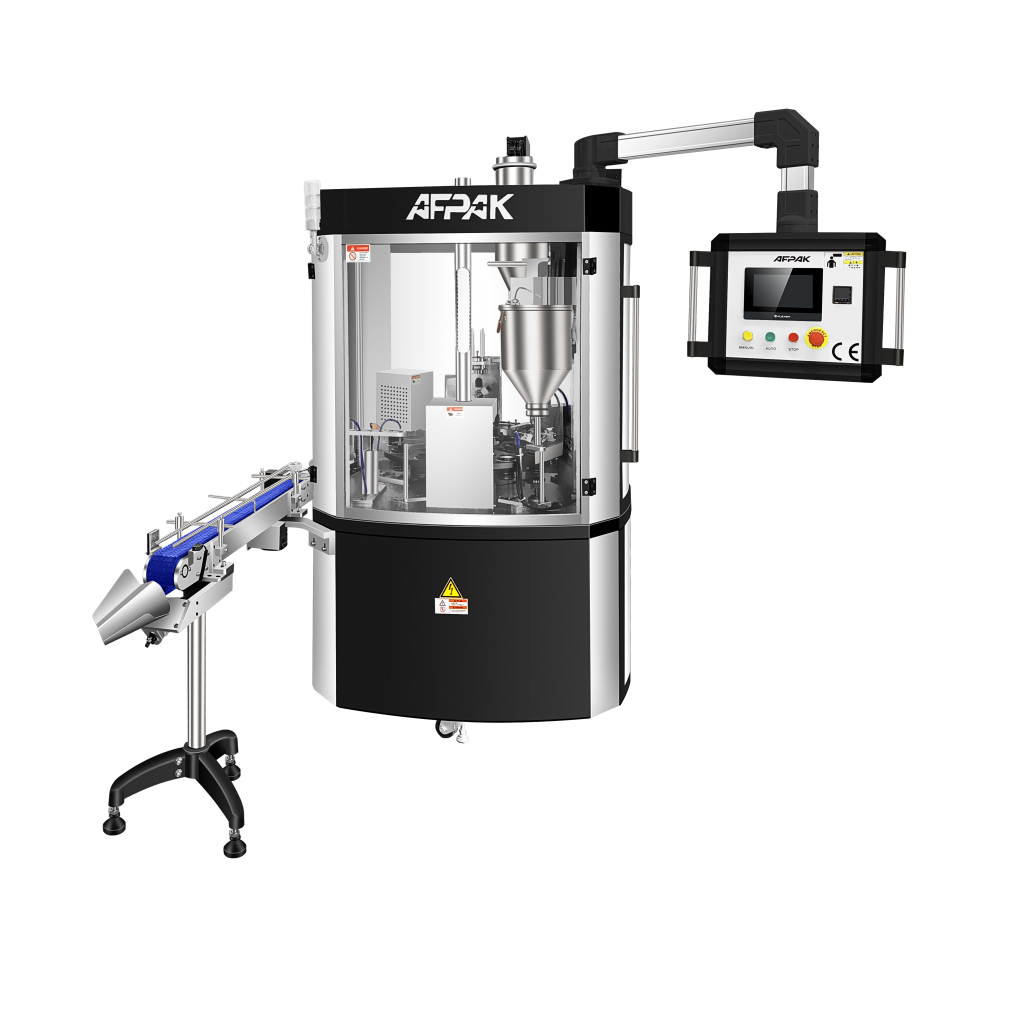

AF-RK1S K Cup Filling Sealing Machine

RN1S-2021-new-K cup filling machine
  • Fast speed: 1 lane working, Up to 50 cycles/min, Produce up to 50 capsules/min.
  • Round table driven by motor, maintain-free design.
  • ertical Empty capsules storage and dropping system to save labors and time.
  • Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy.

Brief Introduce:

K cups are the best seller of single serve coffee in the North American market. We have helped many small and medium companies to produce their own brands K-cups to the market.

The AFPAK AF-RK1S K cup filling sealing is automatically machine and very popular because of its small size, fast speed and easy to use, We have built this machine to produce K cups, K shots, and similar cups.

This is a customize-built machine, you can use your own designed capsules in this machine

It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, soluble powders, coffee, salads, dreeings, desserts, dry soups, frozen dished, cosmetics, and so on.

Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable production performance.

Model AF-RK1S
Lanes 1
Output Up to 50 capsules/min or 3000 capsules/h
Filling Accuracy ±0.2 grams
Voltage 1* 110V/220V/50HZ/60HZ
Machine weight 500 Kgs
Machine dimesions 2000*1300*2000 mm
Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration
  1. Fast speed: 1 lane working, Up to 50 cycles/min, Produce up to 50 capsules/min
  2. Round table driven by motor, maintain-free design
  3. Vertical Empty capsules storage and dropping system to save labors and time
  4. Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
  5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
  6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
  7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
  8. Standard control system from Omron or Siemens or Allen Bradley
  9. Various exit options for different second packaging solutions.
  10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
  11. Easy cleaning and product change, even between coffee and soluble powders.
  12. The entire production process can be easily monitored by an operator performing all operations on the front side of the machine.
  13. Safety Door: Open door, machine stop.
  14. Small footprint layout required: you can put this machine in any places
  1. Vertical capsules feeding system
  2. Automatic detect whether capsules well loaded on the machine by sensor.
  3. Servo motor to fill coffee while vibrating, weight around 7-12g ( can be adjust)(Nitrogen flushing here)
  4. Clean the capsule edge and press the coffee tightly
  5. Put pre-cut lids (can also use rolled film)
  6. Seal inside perforated film/Paper filter (Nitrogen flushing here)
  7. Seal outside aluminum/plastic film
  8. Output to the conveyor
  1. In-line weighing system
  2. Cutting and putting the filter on the capsules button
  3. Integration of pouches packaging machine
  4. Integration of boxes packaging machine
  5. Liquid dosing system for different favors of coffee
  6. Auto sort capsules and feeding to the machine


    Please prove you are human by selecting the Star.

    AF-HK1 K Cup Filling Sealing Machine

    K cup-filling-sealing-machine
    • The basic machine, 1 lanes can produce up to 30-50 K cups per min.
    • Pneumatic system driven carrier plates, very easy to maintain and clean.
    • Handle different capsule styles with easy size changeover.
    • Small footprint layout, easy to use and maintain.

    Brief Introduce:

    K cups are the best seller of single serve coffee in the North American market. We have helped many small and startup companies to produce their own brands K cups to the market.

    The AFPAK AF-HK1 K cup filling sealing machine is a fully automatic machine and very popular because it’s small size and easy to use.

    We have built this machine to produce K cups, K shots, and similar cups.

    This is a customize-built machine, you can use your own designed capsules in this machine.

    It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, soluble powders, coffee, salads, dressings, desserts, dry soups, frozen dished, cosmetics, and so on.

    Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable production performance.

    Model AF-HK1
    Lanes 1
    Output Up to 50 capsules/min or 3000 capsules/h
    Filling Accuracy ±0.2 grams
    Voltage 1* 110V/220V/50HZ/60HZ
    Machine weight 500 Kgs
    Machine dimensions 2000*900*2000 mm
    Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration
    1. Fast speed: 1 lane working, Up to 30 cycles/min, Produce up to 30 capsules/min
    2. Maintenance-free, backlash-free carrier plates driven by pneumatic cylinders to transport the containers
    3. Vertical Empty capsules storage and dropping system to save labors and time
    4. Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
    5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
    6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
    7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
    8. Standard control system from Omron or Siemens or Allen Bradley
    9. Various exit options for different second packaging solutions.
    10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
    11. Easy cleaning and product change, even between coffee and soluble powders
    12. The entire production process can be easily monitored by an operator performing all operations on the front side of the machine
    13. Safety Door: Open door, machine stop
    14. Small footprint layout required: you can put this machine in any places
    1. Vertical capsules feeding system
    2. Automatic detect whether capsules well loaded on the machine by sensor.
    3. Servo motor to fill coffee while vibrating, weight around 7-12g ( can be adjust)(Nitrogen flushing here)
    4. Clean the capsule edge and press the coffee tightly
    5. Put pre-cut lids (can also use rolled film)
    6. Seal inside perforated film/Paper filter (Nitrogen flushing here)
    7. Seal outside aluminum/plastic film
    8. Output to the conveyor
    1. In-line weighing system
    2. Cutting and putting the filter on the capsules button
    3. Integration of pouches packaging machine
    4. Integration of boxes packaging machine
    5. Liquid dosing system for different favors of coffee
    6. Auto sort capsules and feeding to the machine


      Please prove you are human by selecting the Plane.

      AF-HK2 K Cup Filling Sealing Machine

      • 2 lanes machine can produce up to 100 K cups per min.
      • Can use both Separated K cups and welded K cups in one machine.
      • Each functions can be controlled uniquely. Very easy to learn and use.
      • Servo motor driven augers to dose the coffee, high accuracy and stable working.

      Brief Introduce:

      This machine designs for the medium size coffee companies.

      The AFPAK AF-HN2 fills and seals K cup compatible capsules. It can produce 2 capsules for each time and produce up to 6000 capsules per hour.

      This is a custom-build fully automatic In-line filling and sealing machine according to your capsules.

      It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, soluble powders, coffee, salads, dressings, desserts, dry soups, frozen dished, cosmetics, and so on.

      Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable product performance.

      Model AF-HK2
      Lanes 2
      Output Up to 100capsules/min or 6000 capsules/h
      Filling Accuracy ±0.2 grams
      Voltage 3*240/400V/50Hz/60Hz   8Kw
      Machine weight 2000 Kgs
      Machine dimesions 4000*1500*2000 mm
      Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration



      1. Fast speed: 2 lanes working, Up to 50 cycles/min (Rolled film 35 cycles/min),Produce up to 100 capsules/min
      2. This machine can produce both Seperated and Welded K cup compatible capsules
      3. Empty capsules storage buffer system to save labors and time
      4. Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
      5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
      6. Sealing temeprature adjustable, beautiful and tight seal guaranteed.
      7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
      8. Standard control system from Omron or Siemens or Allen Bradley
      9. Various exit options for different second packaging solutions.
      10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside, ensure your coffee won’t get oxidized.
      11. Easy cleanning and product change, even between coffee and soluble powders
      12. The entire production process can be easily monitored by an operator performing all operations on the front side of the machine
      13. Maintenance-free, backlash-free slat tranfer to transport the containers
      1. Vertical capsules feeding system
      2. Automatic detect whether capsules well loaded on the machine by sensor.
      3. Servo motor to fill coffee while vibrating, weight around 7-12g ( can be adjust)(Nitrogen flushing here)
      4. Clean the capsule edge and press the coffee tightly
      5. Put pre-cut lids (can also use rolled film)
      6. Seal inside perforated film/Paper filter (Nitrogen flushing here)
      7. Seal outside aluminum/plastic film
      8. Output to the conveyor
      1. In-line weighing system
      2. Cutting and putting the filter on the capsules button
      3. Integration of pouches packaging machine
      4. Integration of boxes packaging machine
      5. Liquid dosing system for different favors of coffee
      6. Auto sort capsules and feeding to the machine


        Please prove you are human by selecting the Plane.

        AF-HK4 K Cup Filling Machine

        K-cup-filling-machine
        • Four lanes machine can produce up to 200 K cups per min.
        • Can be extended with various additional functions.
        • Low noise emissions, meets the highest standards set for process hygiene.
        • Fast delivery, and easy to learn, use and maintain.

        Brief Introduce:

        The AFPAK AF-HK4 fills and seals both Welded and Separated K cups.

        This is a custom-build fully automatic In-line filling and sealing machine.

        It is suitable for packaging a wide range of liquid, paste, granulated and powdered products, you can use this machine to fill dairy products, soluble powders, tea and coffee, salads, dressings, desserts, dry soups, frozen dished, cosmetics, and so on.

        Thanks to the exceptional designs in mechanical and program, this machine guarantees the most reliable product performance.

        Model AF-HK4
        Lanes 4
        Output Up to 200capsules/min or 12000 capsules/h
        Filling Accuracy ±0.2 grams
        Voltage 3*240/400V/50Hz/60Hz   8Kw
        Machine weight 1800 Kgs
        Machine dimensions 4800*1500*2000 mm
        Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration



        1. Fast speed: 4 lanes working, Up to 50 cycles/min (Rolled film 35 cycles/min),Produce up to 200 capsules/min
        2. Maintenance-free, backlash-free timing belt to transport the containers
        3. Empty capsules storage buffer system to save labors and time
        4. Extremely Accurate Dosing: Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
        5. Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
        6. Sealing temperature adjustable, beautiful and tight seal guaranteed.
        7. Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
        8. Standard control system from Omron or Siemens or Allen Bradley
        9. Various exit options for different second packaging solutions.
        10. High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
        11. Minimal maintenance requirements
        1. Auto feeding to the machine
        2. Automatic detect whether capsules well loaded on the machine by sensor.
        3. Servo motor to fill coffee while vibrating, weight around 5-7g ( can be adjust)(Nitrogen flushing here)
        4. Clean the capsule edge and press the coffee tightly
        5. Put pre-cut lids (can also use rolled film)
        6. Sealing (Nitrogen flushing here)
        7. Output to the conveyor
        8. Reject the unqualified capsules.
        1. On-line weighing system to assure excellent product quality.
        2. Cutting and putting the filter on the capsules button
        3. Integration of pouches packaging machine
        4. Integration of boxes packaging machine
        5. Dosing liquid flavors into the capsules


          Please prove you are human by selecting the House.

          AF-B10 K Cup Packaging Machine

          K cup Packaging Machine
          • Customized solution to pack 12-36 K cups in one box
          • Special order inside the boxes
          • Fully customized solution, can also use for other solutions
          • Fast delivery, and easy to learn, use and maintain.

          Brief Introduce:

          The AFPAK AF-B10 is specially designed to pack K cups into boxes solutions.

          It is easy to use and maintain, No wearing parts, beginners can easily start

          The equipment can automatically arrange the cups, automatically grab the cups into the tray, automatic boxing, automatic box sealing and other functions, and it can be operated by one person.

          The equipment has more than 10 design patents. It is a mature packaging system independently developed by our company. It is widely used and easy to use.

          Model AF-B10
          Lanes 1
          Output Up to 40 boxes per minute
          Voltage 3*240/400V/50Hz/60Hz   8Kw
          Machine weight 1500 Kgs
          Machine dimensions 4000*2000*1500 mm
          Note The above technical data are examples and may vary depending on container dimensions, filling goods and line configuration



          1. Fast speed: 1 lane working, Up to 40 cycles/min, Produce up to 40 boxes per minute
          2. Maintenance-free, no need special maintenance for every days or weeks
          3. It can produce boxes of various specifications, and the size change is very convenient. It only takes 20-30 minutes.
          4. Adopt world advanced PLC control system, the programs are all developed by our company, with intellectual property patents
          5. This equipment is a customized equipment, produced according to your box size and requirements, and is the most suitable equipment for your factory.
          1. Auto sorting the K cups
          2. Auto suck the K cups to the tray
          3. Auto open the boxes
          4. Auto close the boxes bottom
          5. Auto push K cups into the boxes
          6. Auto close the boxes top
          7. Auto spray glue
          8. Auto output
          1. On-line weighing system to assure excellent product quality.
          2. Date printing system
          3. Automatic palletizing box system


            Please prove you are human by selecting the Tree.

            K-cup-filling-packaging-line

            One stop K cup Filling Sealing Packaging Solutions

            AFPAK has many years of customization experience and customized their K cups production line for dozens of customers. It has industry-leading integration functions.

            We customize the production of your K CUP filling and sealing packaging line from the perspective of the customer.

            Before customizing, you need to inform us:
            1. Customized functions
            2. Dimensions of the packaging container
            3. The size of the venue
            4. Voltage requirements
            5. The size of the production line

            Custom-build Service

            AFPAK Has a strong research and developing team to design the machines according to your requirement. Please make your needs clear, we will make the most suitable machine for you.

            Good after-sale service

            After-sale service is very important to the users of the machine. AFPAK build the machines by ourselves, so we know every problem you will face and have a complete solution for the problems you are facing.

            Top quality and fast delivery

            AFPAK is very strict to the quality of the manufacturing workers and engineers, all our workers have at least 5 years in the machines building industry to ensure the best manufacturing process for our customers.

            6 Reasons Why Choose AFPKG K Cup Filling Machine & K Cup Sealing Machine
