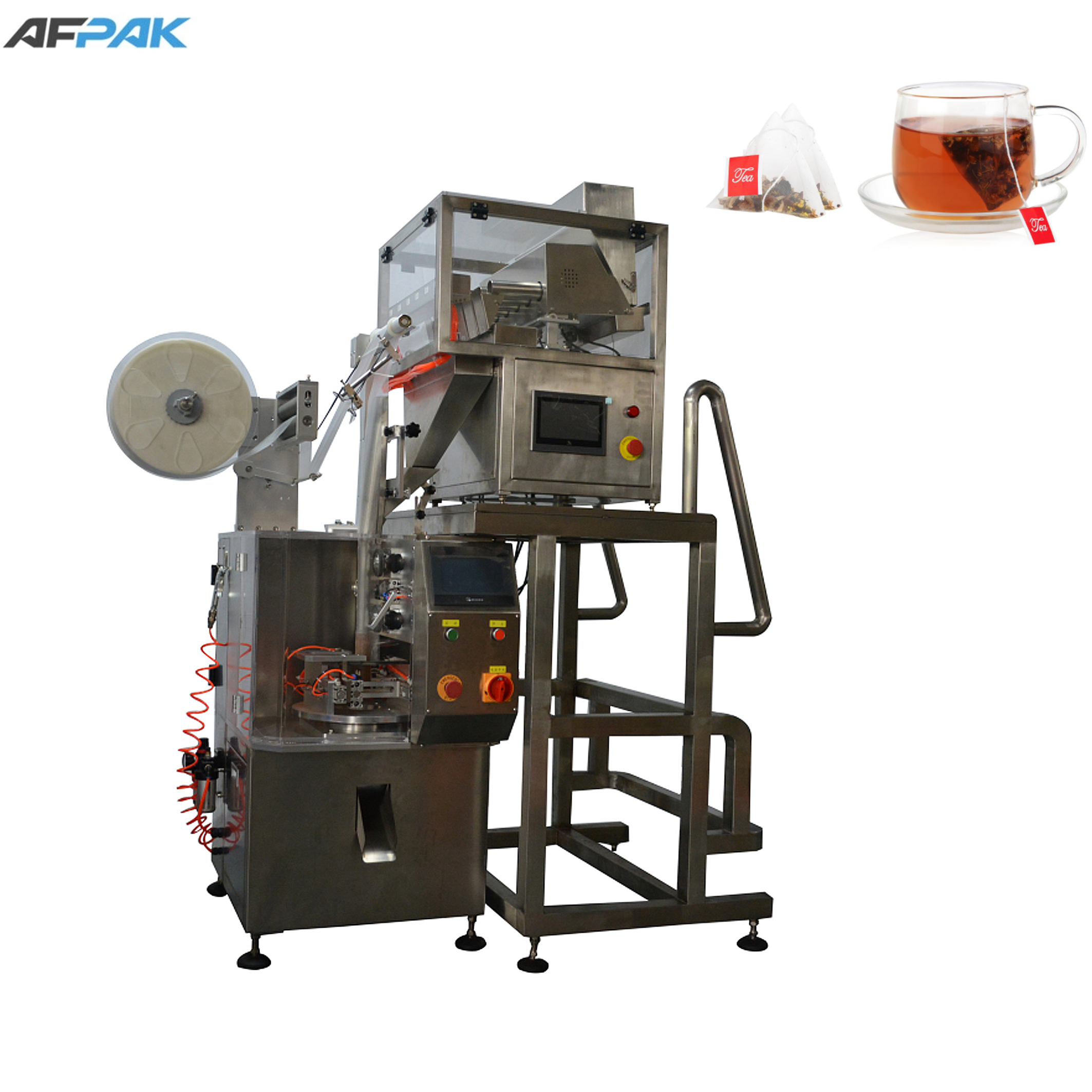

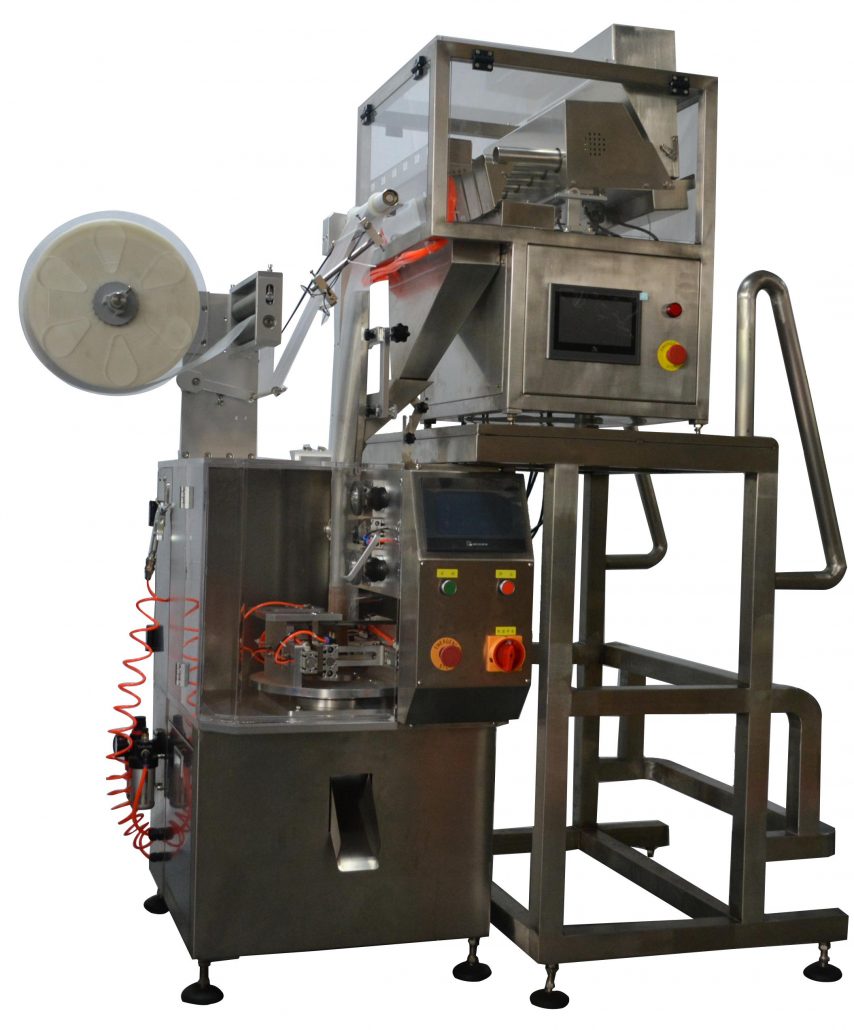

Automatic bag triangle automatic Coffee tea packing machine

Characteristic

1. The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials,such as:tea,herbal tea, health tea grass-root type and so on.

2. Inner and outer bag’s film drawing  is controlled by the stepper motor,stable bag length and accurate positioning.

3. The temperature controller is adjusted by PID to make the temperature control more accurate.

4. Overall machine movement is controlled by PLC, with human-machine interface display,ensure health of products

5. Packing material:filter paper,thread,composite membrane and labels.

Model AF-TB1
Measuring Scope 3 – 10 g
Inner bag size L )50 – 70 mm  ( W ) :45 – 80 mm
Outer bag size (L) :80 – 120 mm   ( W ) :75 – 95 mm
Packing Speed 30 – 40 bags / min
Dimension L1500*W650*H2250 mm
Air pressure/gas consumption ≥0.5m3/min 0.65MPa
Machine weight 500Kgs


    Please prove you are human by selecting the key.

    TEA Pouch Machine Samples

    FAQs

    How long need to build one machine like this?

    Normally we need 2-3 months to produce a machine.

    What should I prepare to build a machine?

    As to our experiences, we suggest you ship us your empty containers, sealing materials, and filling materials, This will be a great help for the machine testing.

    What do I need in my factory to work with this machine?

    You only need the big enough air compressor and Nitrogen generator. If you don’t have, we can also offer.

    What's the warranty of this machine?

    We offer 2 years warranty on all our machines, and lifelong maintain service.

    How to install this machine when we get it?

    Machines will ship in a complete package, you will no need to assemble again in your factory. We suggest you to invite our engineers to your factory to train your people.
