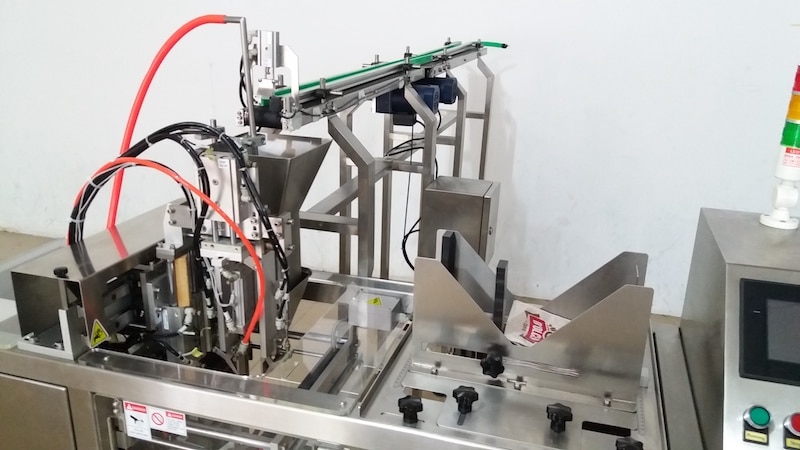

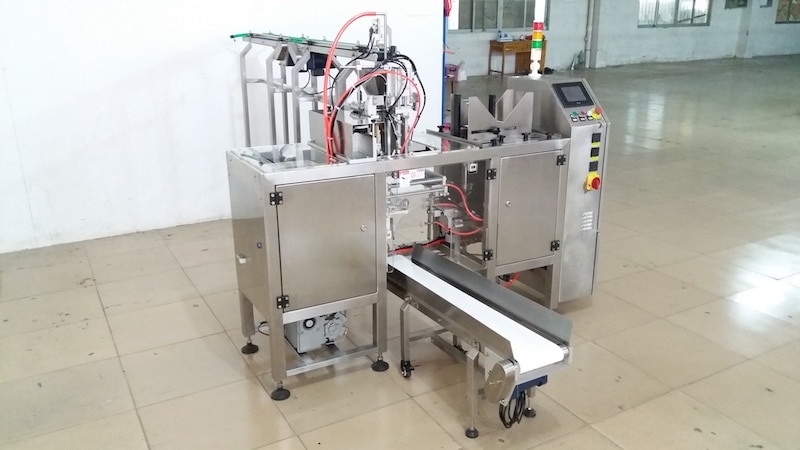

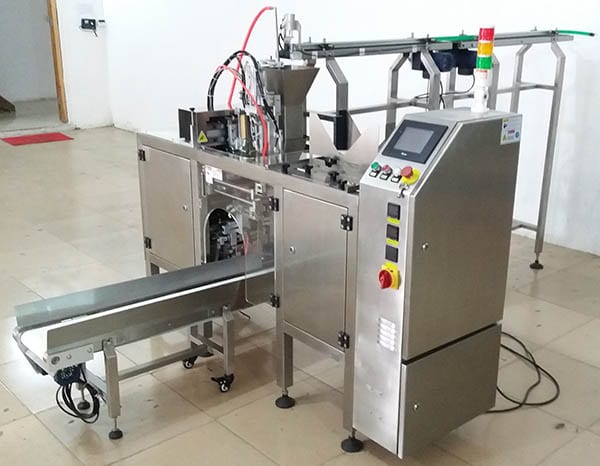

AF-FS Coffee pouch machine for capsules pouch filling sealing

Coffee pouch machine features

  1. AFPAK coffee pouch machine is made special to handle varieties of packaging jobs of preformed pouches. Features with compact design in single station working and touch screen easy setting, loading bag on a top cassette with easy adjustment function, would smart suit to Multi-size handling by one machine
  2. System control by PLC, motions drove by Cylinders, used suction cups to do typical motions of picking & transferring, opening bag step by step, easy known how to operation and maintenance.
  3. Multi combined able with varieties of dosing tools for varieties of packaging needs in real, suit with such as Multi-head scale, linear scale, auger filler, cup filler, liquid pump and so on, for food or none food.
  4. AFPAK coffee capsule pouch filling sealing machine is a mini conception by offering a modest level of packing speed from 6 to 15bags/min only so can be one thing in economic investment to get. Save money enough to operate by those small or medium users who meet needs to upgrade his packaging jobs but limited productions output in fact, in case they do not spend huge amount to get a big stuff but overflow his output level in deep.
Model AF-B10
Machine size L1630-1750mm*W510-750mm* H1300-1650mm
Speed 6-30 bags/min
Filling range 10/20/30 pcs/bag
Bag size W 80-300mm*H 150-430 mm
Voltage Can be customized
Air pressure/gas consumption ≥0.7m3/min 0.65MPa
Machine weight 160-220Kgs


    Please prove you are human by selecting the Car.

    Coffee Pouch Machine Samples

    FAQs

    How long need to build one machine like this?

    Normally we need 2-3 months to produce a machine.

    What should I prepare to build a machine?

    As to our experiences, we suggest you ship us your empty containers, sealing materials, and filling materials, This will be a great help for the machine testing.

    What do I need in my factory to work with this machine?

    You only need the big enough air compressor and Nitrogen generator. If you don’t have, we can also offer.

    What's the warranty of this machine?

    We offer 2 years warranty on all our machines, and lifelong maintain service.

    How to install this machine when we get it?

    Machines will ship in a complete package, you will no need to assemble again in your factory. We suggest you to invite our engineers to your factory to train your people.
