Main Performance:
1.Stable and operating smoothly,
2.The frequency converter is used, the bags were set a long, slow and hesitant,
3.Imports of electrical control system, lcd display, parameter set is simple,
4.Superscript highly sensitive photoelectric eye tracking the exact location so that more precise closure,
5.Temperature controlled by an independent P1D better packaging matericals for various films,
6.Large rotating disk with automatic , air package rates the best results.
Product Parameter:

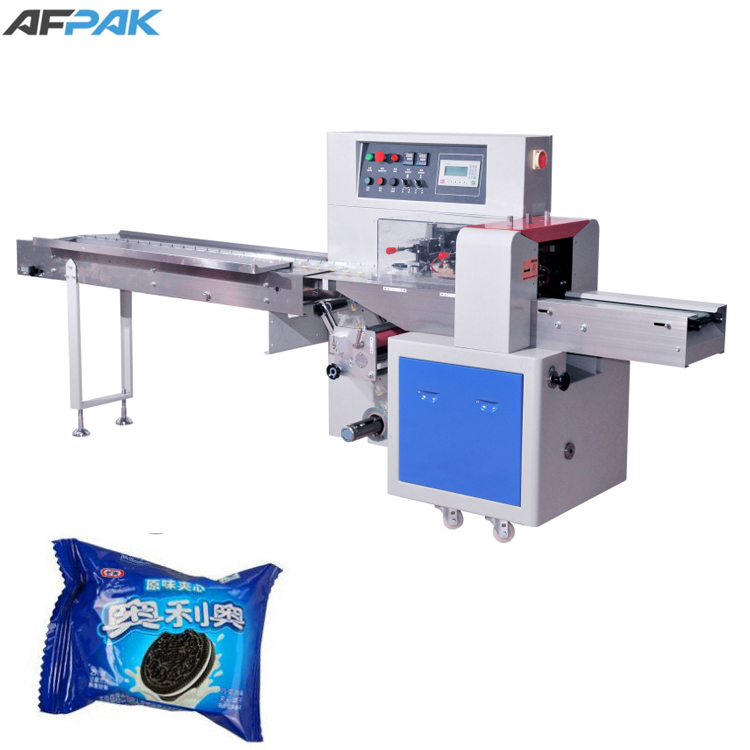

| Product name | Pillow Sealing machine |
| Type | Horizontal |
| Packing materials | PP,PE,PVC,PS,EVA,PET,PVDC+PVC |
| Machine speed | 30-100 Packs/min |
| Machine size (around) | L4000*W930*H1370MM |
| Machine weight (around) | 400KGS |
| Power | 220V,50Hz,5KW |
| Product Height | 30-100mm |
| Film width | 90-400mm |
| Bag length/Bag width | 60-500mm/35-160mm |
1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
