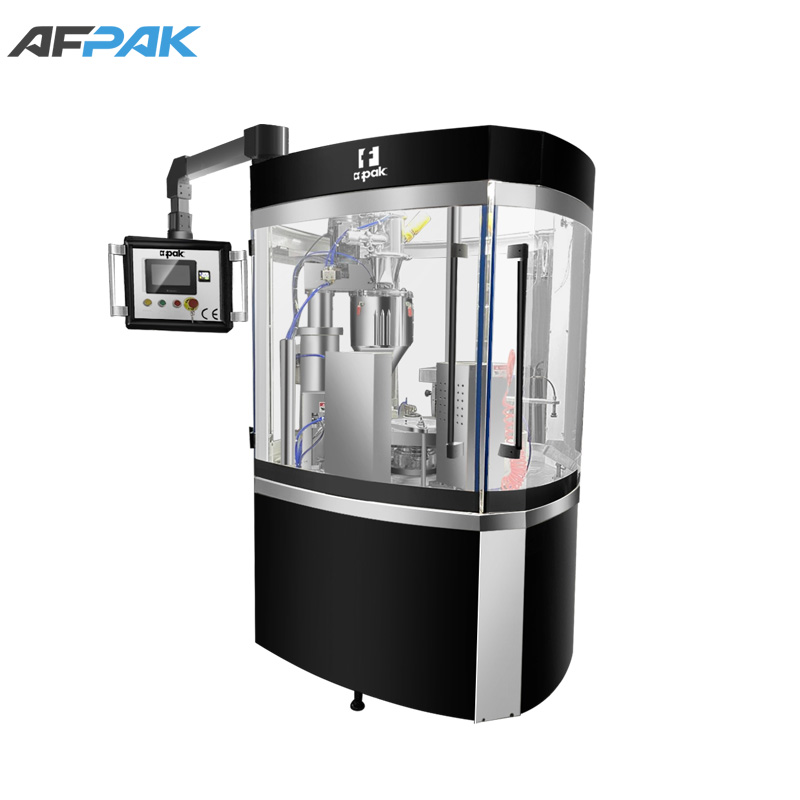

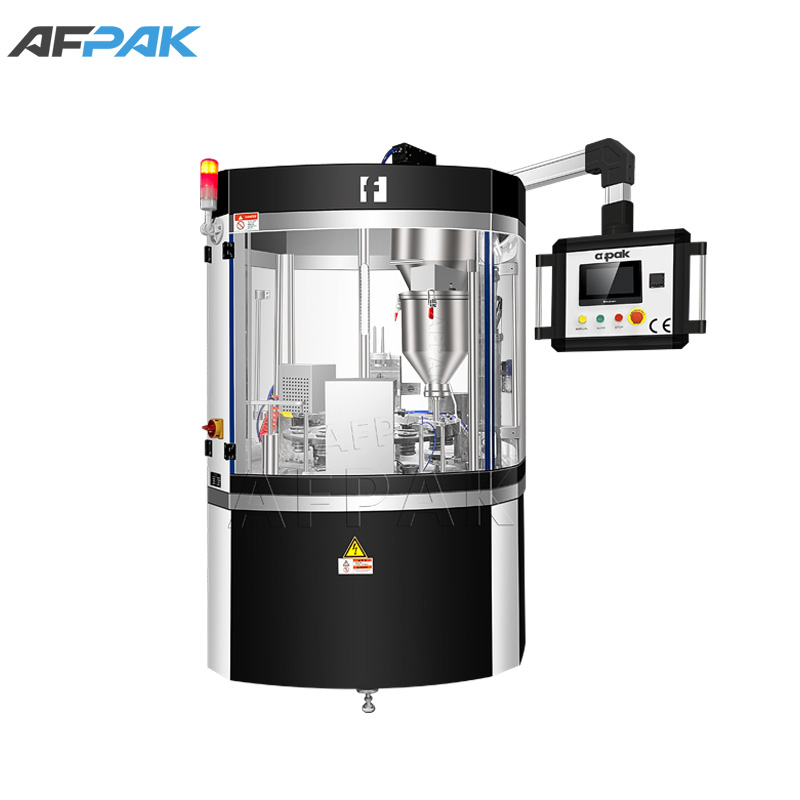

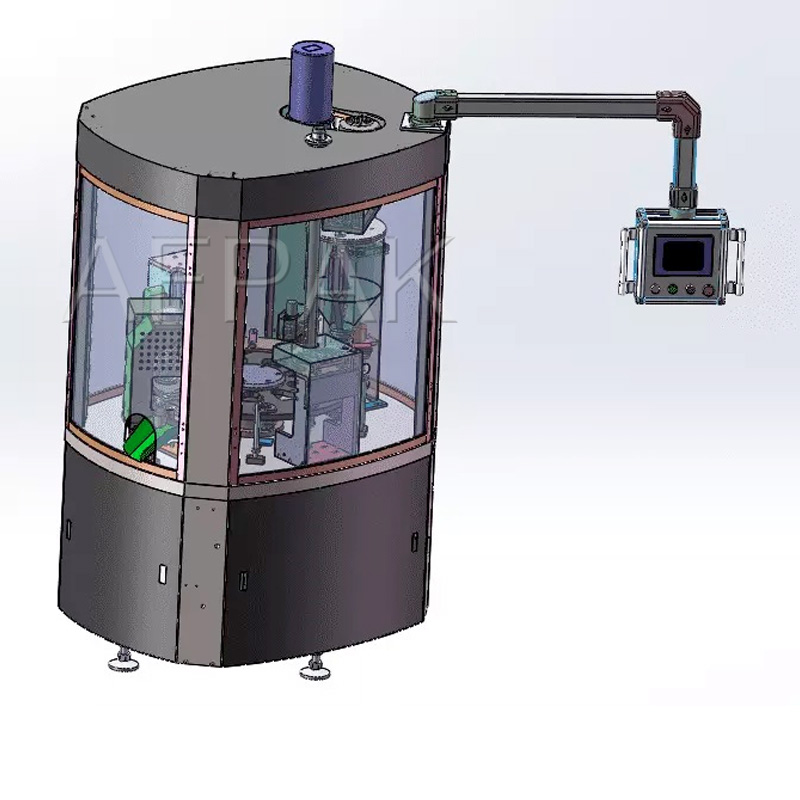

AFPAK NEW designed for coffee capsules like K CUP, dolce gusto capsules, NESPRESSO, Lavazza capsules etc,this Rotary type has excellent sanitary design and strong structure , the machine adopts most advanced all-stainless srell structure and open design, and it very easy to clean. we understand the need for lean maintenance and cost reducition, so we never use special design compoents.
this machine has because the best choice for small and medium-sized coffee producers.You deserve it!
Specifications:
No.
|
Items
|
Parameter
|
1 |
Packing speed |
50-70 c.p.min |
2 |
Power Source |
1 ph, 220V 50HZ/60HZ |
3 |
Power |
2.5 Kw |
4 |
Air pressure |
0.6-0.8MPa |
5 |
Air consumption |
200L/min |
6 |
Working Temperature |
5-35℃ |
7 |
Nitrogen Consumption |
20L/min |
9 |
Machine Rack size |
L1500*W1620*H2150 mm |
9 |
Weight |
750Kg |
Machine Features:
High stability: Rational designed Machine can work 24 hours continuously
High accuracy: filling accuracy is stable at ±0.2g, and very stable working.
Fast speed: 1 lane working, Up to 70 cycles/min, Produce up to 70 capsules/min
Smart working: AFPAK’s machines incorporate a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
Easy to Use: For extensive control of any internal parameters, the machine features an easy to use touch screen interface (HMI).
Control system: Industrial Japan PLC controller Omron/schneider. Positioning system driven by stepper motors with feedback. Touch screen (HMI) Omron/Schneider. All in English language. (If you can translate for us, we can put your language inside
Simple design,easy to operate. don’t need spend lot of time to maintain.
Small footprint layout required: you can put this machine in any places
Machine Functions:

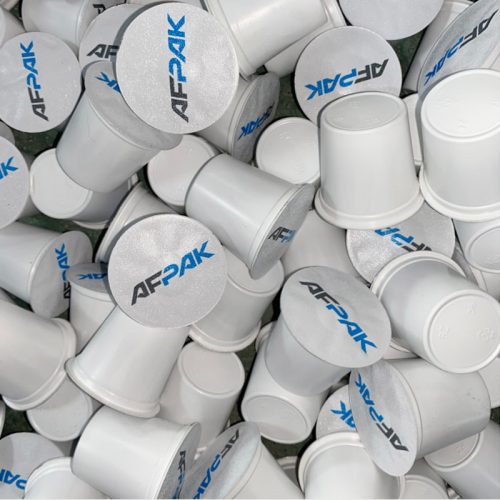

Automatic drop empty K CUP
Automatic detect whether K CUP well located on the machine by sensor.
Servo motor to fill coffee while vibrating, weight around 8-12g (can be adjust) Nitrogen flushing here

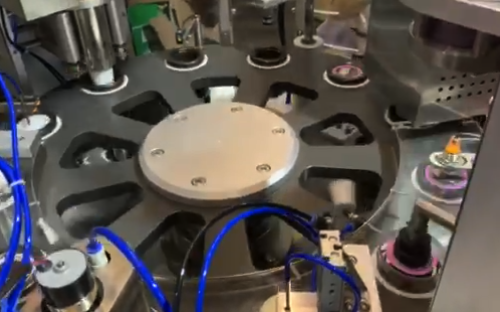

Auto suck Foil Lids (Or roll film, cutting and sealing) Nitrogen flushing here
Auto detect whether the foil lids is ready by Sensor Nitrogen flushing here
Auto Seal twice
Output to the conveyor
Optional functions:
In-line weighing system
Cutting and putting the filter on the capsules button
Integration of pouches packaging machine
Integration of boxes packaging machine
Liquid dosing system for different favors of coffee
Auto sort capsules and feeding to the machine
